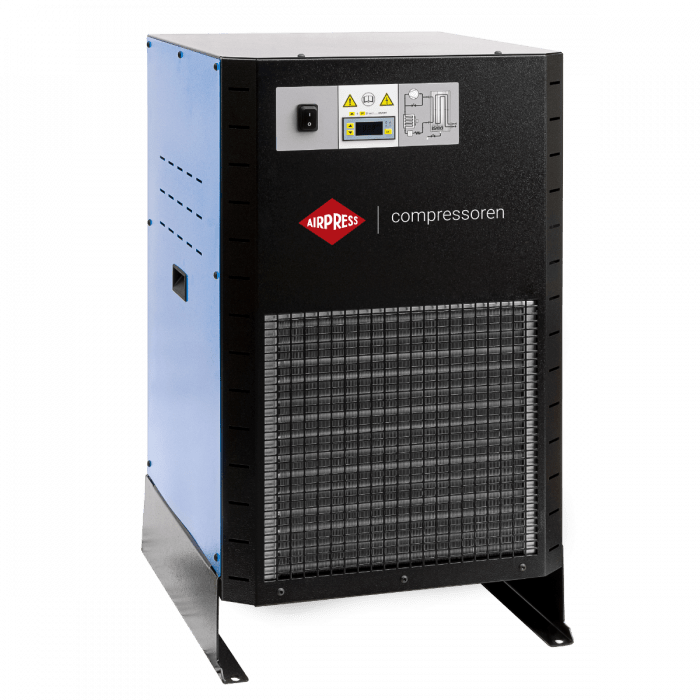

Secador de adsorção RDO 380 1 1/2" 6333 l/min 230 V
-24%
2 695,89 €
2 517,98 €
Imposto incl.:
2 517,98 €
Imposto incl.:
Imposto incl.:
Esgotado
SKU
3900380-E
-
Precisas de conselhos? Entra em contacto connosco:
+351 911 169 311. - 30 dias para devolver o produto!
- 98% dos clientes estão satisfeitos com o uso dos produtos da marca Airpress.
- Mais de 65 anos de experiência no mercado europeu!
- Em breve as vendas estarão disponíveis!
Detalhes do produto
| SKU | 3900380-E |
|---|---|
| EAN 13 | 8712418423143 |
| Weight (netto) (kg) | 90 kg |
| Length (mm) | 495 mm4,95 dm |
| Width (mm) | 588 mm5,88 dm |
| Height (mm) | 826 mm8,26 dm |
| Type | RDO |
| Control panel | Digital |
| Air flow at 7 bar (l/min) | 6333 |
| Air flow at 7 bar (m3/h) | 380 m³/h6,333 m³/min |
| Purity class - humidity (ISO 8573-1) | 4 |
| Connection type | Female |
| Air connection (") | 1 1/2 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
|---|---|
| Power (kW) | 1.1 |
| IP classification | IP65 |
| Cooling air volume (m3/h) | 1 100 m³/h18,333 m³/min |
| Refrigerant | R513A |
| Refrigerant weight (kg) | 1.20 |
| Maximum pressure (bar) | 16 |
| Pressure dew points (°C) | 3 |
| Max. inlet air temperature (°C) | 55 °C |
| Minimum ambient temperature (°C) | 1 |
| Maximum ambient temperature (°C) | 45 |
| Heat rejection (kW) | 3.1 |
| Noise level dB (A) (0 m) | >65 |
Documentos
Baixar PDF
Manual (before 2023) FR RDO 20/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900
Manual EN (after 2023) RDO 2-/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900/2600
Manual (before 2023) DE RDO 20/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900
Manual (before 2023) NL RDO 20/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900
Manual PL RDO 20/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900
manual_RDO_DE_BEFORE_2023.pdf
manual_RDO_NL_BEFORE_2023.pdf
RDO_USER_MANUAL 2024_EN_MA - WEB.pdf
manual_RDO_PL.pdf
RDO_USER_MANUAL_FR_12092023.pdf
