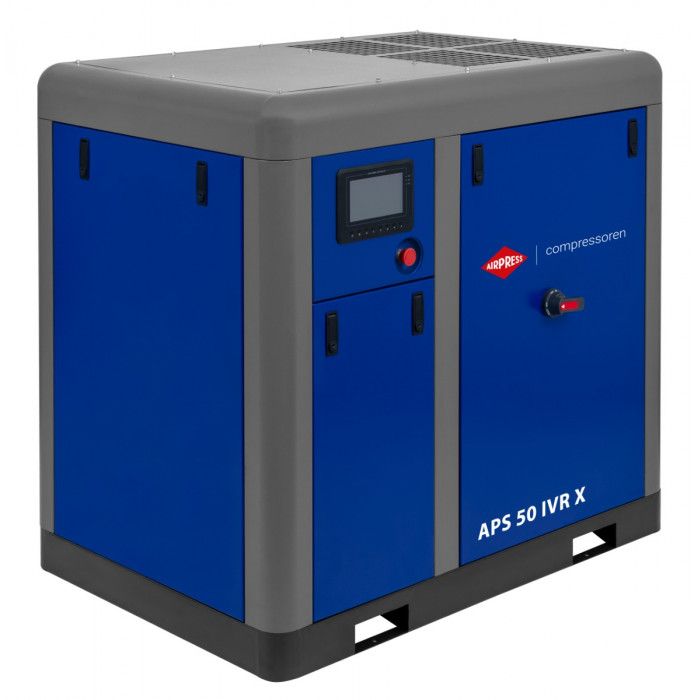

Compressor de parafuso APS 50 IVR X 10 bar 50 CV/37 kW 1370-6200 l/min
Esgotado
The APS 50 IVR-X compressor from Airpress is 147 x 100 x 137 cm in size and weighs 610 kg. The compressor has a capacity of 50 hp and 37 kW. At 10 bar the compressor has a capacity of 5620 liters per minute, at 8 bar this is 6200 liters per minute. This machine is especially suitable for larger companies.
-
Precisas de conselhos? Entra em contacto connosco:
+351 911 169 311. - 30 dias para devolver o produto!
- 98% dos clientes estão satisfeitos com o uso dos produtos da marca Airpress.
- Mais de 65 anos de experiência no mercado europeu!
- Em breve as vendas estarão disponíveis!
Detalhes do produto
| SKU | 369450-IVR |
|---|---|
| EAN 13 | 8712418372366 |
| Weight (netto) (kg) | 610 kg |
| Length (mm) | 1 470 mm1,47 m |
| Width (mm) | 1 000 mm1 m |
| Height (mm) | 1 370 mm1,37 m |
| Drive | Direct driven 1:1 |
| Start | Inverter |
| Motor type | PM |
| Motor power (hp / kW) | 50.0 HP / 37.0 kW |
| Motor efficiency class | IE4 |
| Stages | 1 |
| Variable speed (IVR) | Sim |
| Minimum rpm 10 bar (rpm/Hz) | 1 000 rpm16,667 Hz |
| Maximum rpm 10 bar (rpm/Hz) | 2 700 rpm/Hz162 kHz |
| Minimum energy consumption 10 bar (kW/m3/h) | 7.8 |
| Maximum energy consumption 10 bar (kW/m3/h) | 9.8 |
| Control panel | MAM-6080 |
| Available languages | Dutch, Polish, German, English |
| Air Receiver | Não |
| Galvanized tank | Não |
| Dryer | No |
|---|---|
| Cooling air volume (m3/h) | 6 800 m³/h1,889 kL/s |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 bar |
| Free air delivery at 8 bar (l/min) | 6 200 L/m10,333 L/h |
| Free air delivery at 10 bar (l/min) | 5 620 L/m9,367 L/h |
| Minimum free air delivery (l/min) | 1 370 L/m2,283 L/h |
| Minimum free air delivery (m3/h) | 82,2 m³/h1,37 m³/min |
| Maximum free air delivery (l/min) | 6 200 L/m10,333 L/h |
| Maximum free air delivery (m3/h) | 372 m³/h6,2 m³/min |
| Noise level dB (A) (0 m) | 80 |
| Noise level dB(A) (4 m) | 60 |
| Main air connection (") | 1 1/2 |
| Minimum ambient temperature (°C) | 10 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | Não |
| Oil capacity (l) | 18 |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP55 |
Produto recomendado
Descrição do produto
A compressor with great qualities and characteristics. This 37 kW is the largest compressor from the single-stage line that we offer. A directly coupled oversized screw block on a permanent magnet motor ensures maximum efficiency. Maximum yield even at low revs. The temperature controlled fan only runs when it is needed, so as long as the oil temperature is below the set value, it does not run and there is also no power consumption. This compressor can deliver up to 6200 liters per minute. The full color touch screen makes reading and adjusting very easy. All components are easily accessible when the panels are removed during maintenance. The machine has been carefully designed so that fewer parts are maintenance-sensitive. The service interval of 3,000 hours also ensures lower maintenance costs.
This machine is very suitable for large companies that, for example, radiate and therefore have a very varying decrease in compressed air.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
